Quick Start Guide

Residential Lumber & Building Material Estimating Software

Makes Quick Work of Itemized Material Takeoffs


Esti-Mate is a simple user friendly program for building professionals who don't have time to learn new procedures or complicated hardware. Designed by and for pro oriented LBM dealers, estimators, home builders, home improvement and remodeling contractors.

Esti-Mate automatically converts takeoff dimensions from blueprints to an itemized list of waste factored delivery order quantities. The program does the most time consuming and normally not exactly error free part of handwritten takeoffs. Lists all lumber and building material items that require estimating formulas, math calculations, math conversions, and adding waste factors. Windows PC program with pop up menu's for fast point and click selection of material types and sizes. Minimal amount of information required from plans for entry to program screen fields.

With Esti-Mate you are able to printout a worksheet of dimensions required for the house type you are working with, and when completed enter these takeoff dimensions to Esti-Mate program screen fields by using your keyboard. We found the best available software and hardware and configured our program to be interface setup ready for use with these products that allows the end user to navigate through program screens and enter the takeoff dimensions directly from your blueprints to the program screen fields. Software works on PC compatible computers with Windows ® 3.1 or greater, allowing flexibility for use at your office, at home, or in the field on laptop computers.

With Esti-Mate complex stick built roofs require only two length entries per easily managed roof section. First year FREE program updates and toll free telephone support provided for installation and program use. PC terminal interface setup available for most POS systems, to transfer the completed Esti-Mate material list directly to your POS quote processing, either local or remote using a modem. This allows you the flexibility to add any item to the takeoff that is in your computer system database, and special order items that would need to be typed in and priced. Then print the completed material estimate with current prices for any quote.

Discount pricing available for members of (NLBMDA), National Lumber and Building Material Dealers Association, and (SBMA), Southern Building Material Association.

Esti-Mate Inc.

top of page

Quick Start Guide
for Estimating with Esti-Mate™

  From the main menu select each menu item and press the F1 function key for a review of the help available.

  The Esti-Mate demo will enable you to print seven take-off estimates for evaluation.

  All estimates created during your review will remain on your computer ready for use when you purchase Esti-Mate software.

  Please take the time to review the enclosed tutorial plan and worksheets with the attached two-car garage. The worksheet of the tutorial plan includes all footage entries required to produce a printout of all lumber and building supply material items that require estimating formulas including waste factors.

  The Esti-Mate demo disk is shipped with tutorial plan on file for reviewing the data entry screens. To review the tutorial plan from the main menu, select estimate menu, then select edit existing, when you see the plan checklist, click on OK at bottom right of screen. By selecting next screen button at the bottom left corner, you can review screens 1 through 11 of the completed tutorial plan.

  To change any of the material types using the mouse, click the down arrow and the pop up list will appear so that you can change the current material type selection.

  If you need help anywhere in Esti-Mate press the F1 function key for more detailed information.

  Esti-Mate has a built in calculator that you can use during numeric input. To bring up the calculator, press the F2 function key or use the right mouse button on the numeric data field. The calculator total can be returned directly into the numeric entry field using the transfer result button.

  After reviewing is finished select exit. If modifications have been made that you want to keep, select save. Otherwise select no save and you will return to the menu. If no modifications to the plan were made, select yes at the pop up selection to return to the menu.

  You are now ready to start providing your customers with better service, faster and more accurate takeoffs, while allowing you more time and opportunity to increase your customer base and sales.

top of page


Tutorial Customer

03-09-2001 Esti-Mate Worksheet Pages 1-3

Description:  1S Crawl with Att Garage, Porch(s)


Date of Plan: 08-04-2001
Plan Number: 1248 w-optional two car garage
Customer Name: Tutorial Plan
Address: 1234 Anywhere Street
City, State, Zip: Fayetteville, NC 28305

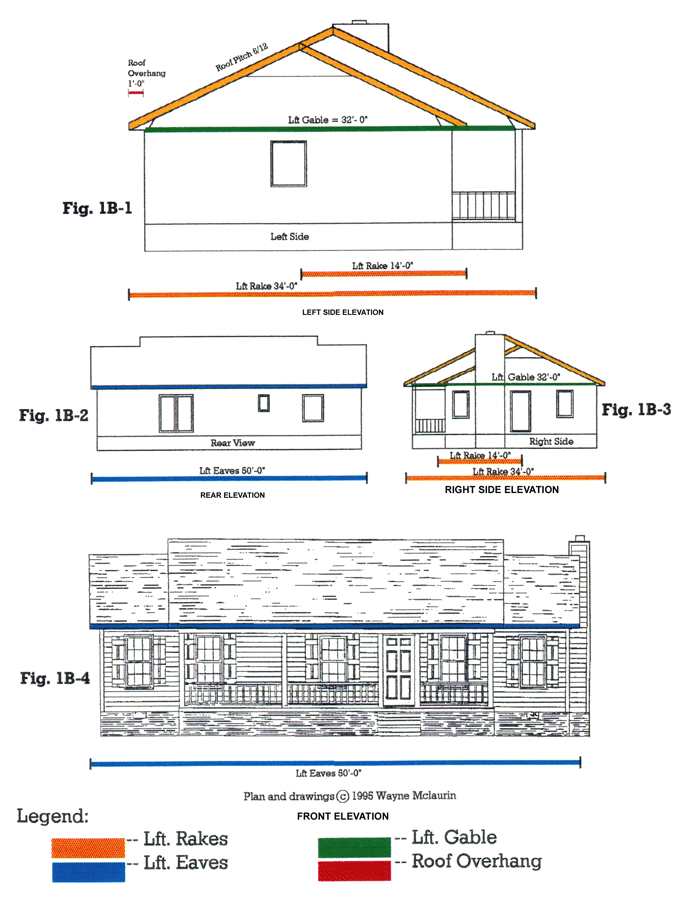

Preliminary Roof and Gable Measurements

Square Footage of Heated Area First Floor: 1248
Square Footage of all Porches:  192
Square Footage of Garage: 484
Pitch of Roof in Inches Per Foot: 6
Total Linear Footage of Eaves: 144
Total Linear Footage of Rakes with Fascia: 108
Roof Overhang in Inches: 12
Total Number of Gables from all Elevations: 2
Widths:  32    32


Measurements Only

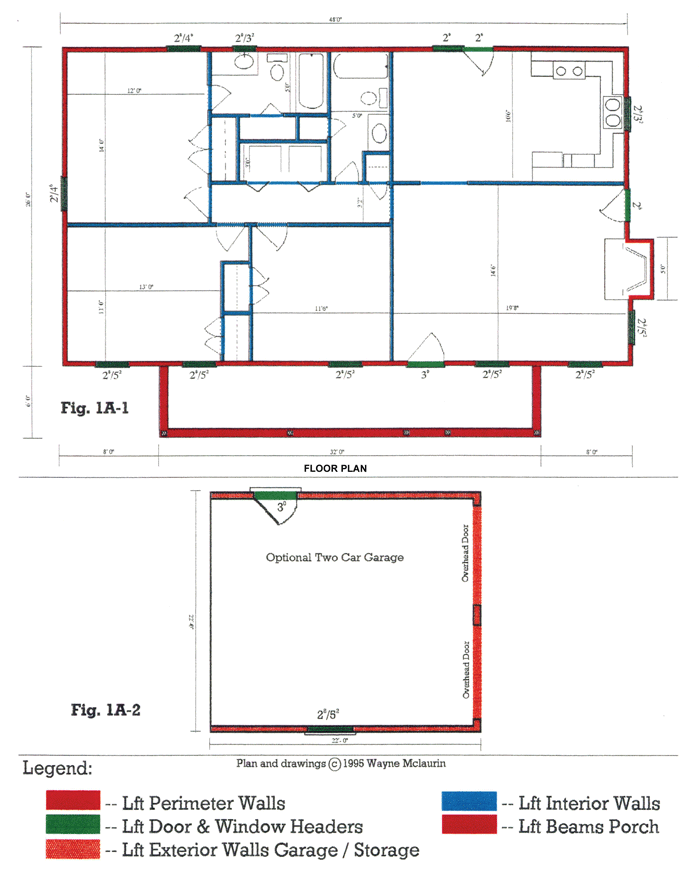

Left of First Floor Perimeter Walls (Heated Area): 148
Number of Outside Corner (Foundation Plan): 5
Length of House (Heated Area): 48
Total Length of House (Including Garage/Storage): 70

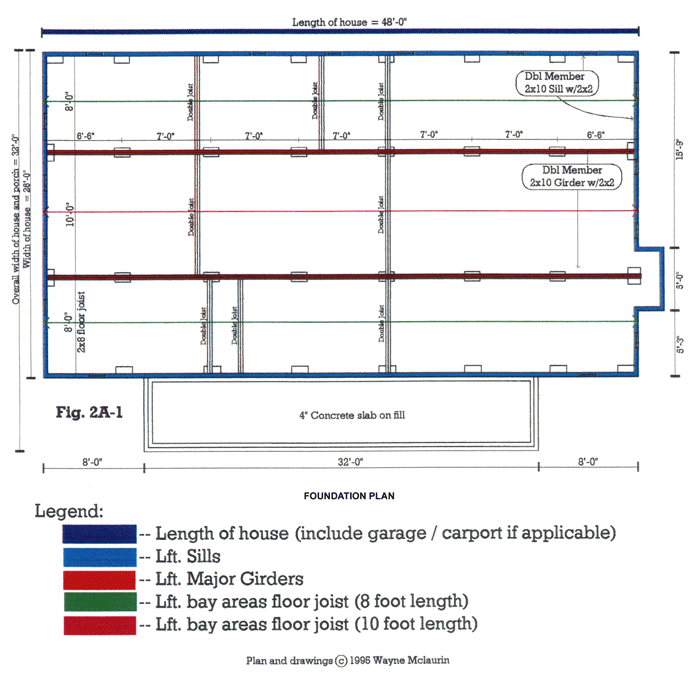

Linear Feet of Major Girders - 8 Ft. Length
Linear Feet of Major Girders - 10 Ft. Length
Linear Feet of Major Girders - 12 Ft. Length
Linear Feet of Major Girders - 14 Ft. Length 96
Linear Feet of Major Girders - 16 Ft. Length
Linear Feet of Major Girders - 8 Ft. Length
Linear Feet of Major Girders - 10 Ft. Length
Linear Feet of Major Girders - 12 Ft. Length
Linear Feet of Major Girders - 14 Ft. Length
Linear Feet of Major Girders - 16 Ft. Length
Linear Feet of Drop Girder - 8 Ft. Length N/A
Linear Feet of Drop Girder - 10 Ft. Length
Linear Feet of Drop Girder - 12 Ft. Length
Linear Feet of Drop Girder - 14 Ft. Length
Linear Feet of Drop Girder - 16 Ft. Length
Linear Feet of Sill - 8 Ft. Length 32
Linear Feet of Sill - 10 Ft. Length 20
Linear Feet of Sill - 12 Ft. Length
Linear Feet of Sill - 14 Ft. Length 96
Linear Feet of Sill - 16 Ft. Length
Linear Feet of Interior Walls (First Floor) **
Square Feet of Heated Area (First Floor) *
Left of Bay Areas Floor Joists - 8 Ft. Length: 96
Left of Bay Areas Floor Joists - 10 Ft. Length: 48
Left of Bay Areas Floor Joists - 12 Ft. Length:
Left of Bay Areas Floor Joists - 14 Ft. Length:
Left of Bay Areas Floor Joists - 16 Ft. Length:
Square Footage for Strip Oak Flooring:
Linear Feet of Exterior Walls (Garage/Storage): 66
Linear Feet of Interior Walls (Garage/Storage):
Square Footage of Garage/ Storage: *
Linear Feet of Beams (Carport/Porch): 44
Square Footage of Carport/Porch: *
Linear Feet of Door & Window Headers: **
Linear Feet of Fascia: **
Square Footage of Roof Area (Hip Roof Add 5%): **
Square Footage of 1st Floor Exterior Wall Siding: **
Square Feet of Gables: **
* = Not required if Preliminary measurements are completed.
** = Calculated value if preliminary measurements are completed.

top of page

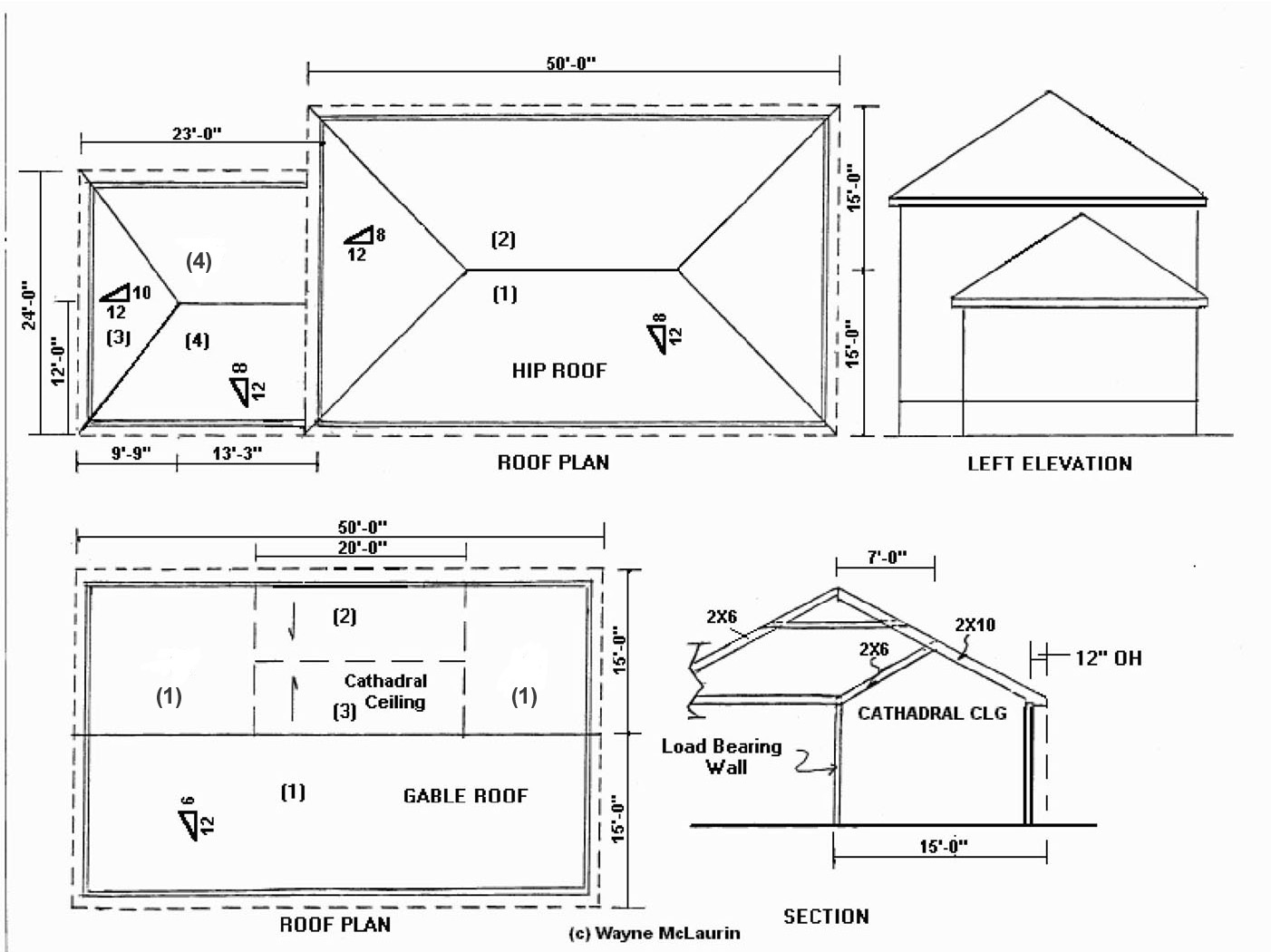

Esti-Mate has developed a method for quickly entering information to complete a stick built roof take-off. The first screen is for entering the linear footage for bay areas of each size and length of ceiling joist required on the plan. The second screen is for entering the rafter runs of each section of the roof type, for example. . . a simple gable roof with one span is made up of two (2) sections of rafter runs and would be entered as two (2) sections. The break-down of the roof take-off into sections as described here facilitates multiple pitches with multiple combinations of section types. On Gable sections only, that have the same rafter size, pitch, and Left of Rafter Run for both sections can be entered as (1) section, by entering the total length of rafter run section including overhangs for both sections in the Left of Section field.

For each section of the roof, click on the Add New Section button. On section type select the matching section from your plan. Each section is for a single run of rafters, not the complete span. To determine the Left of Rafter Run, measure the exact horizontal length from ridge to the outer edge of overhang. To determine the Left of Section, measure the total Length of rafter run section including overhangs. When entering values you may use feet-inches or any fractional value. Example; 12-6 or 12.5 would both be 12 feet 6 inches. To enter feet-inches make sure that you place a hyphen or minus sign between the two values or unpredictable results may occur.

Hip roofs, are always entered as two (2) sections, with each section consisting of two hip rafters. To determine the Left of Rafter Run, measure the exact horizontal length from ridge to outer edge of overhang. To determine the Left of Section, measure the total length of rafter run section including overhangs and enter in Left of section field. Hip w/Valley selection, and Gable w/ Valley selection are also always entered as two (2) sections.  Click to view the illustration.


SECTION (1) P= 8 RS= 2X6 R=15-0 LR= 50-0
SECTION (2) P= 8 RS= 2X6 R=15-0 LR= 50-0
SECTION (3) P=10 RS= 2X6 R= 9-9 LR= 24-0
GABLE SECTION (4) P= 8 RS= 2X6 R=12-0 LR=26-6

SECTION (1) P= 6 RS= 2X6 R=15-0 LR= 80-0
SECTION (2) P= 6 RS= 2X10 R=15-0 LR= 20-0
SECTION (3) P= 6 RS= 2X6 R= 7-0 LR= 20-0
